Iscar ISCAR 5567523

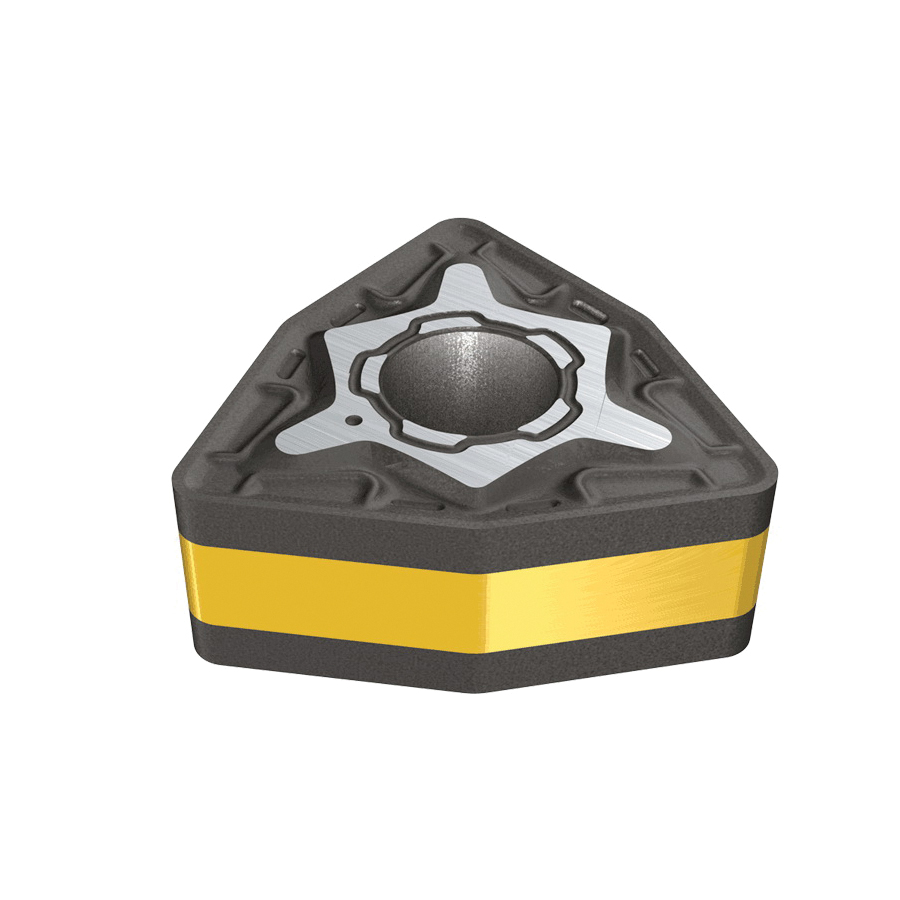

Iscar 5567523 2-Sided Turning Insert, ANSI Code: WNMG 432-M3P IC8250, WNMG Insert, Material Grade: M, P, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Wnmg 432-m3p Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, M3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: WNMG 432-M3P IC8250, ISO Code: WNMG 080408-M3P IC8250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- M3P double-sided insert chipbreaker for medium machining of steel with reinforced cutting edge
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationMedium Machining Applications
ANSI CodeWNMG 432-M3P IC8250
ChipbreakerM3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-M3P IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size08
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
