Iscar ISCAR 5567521

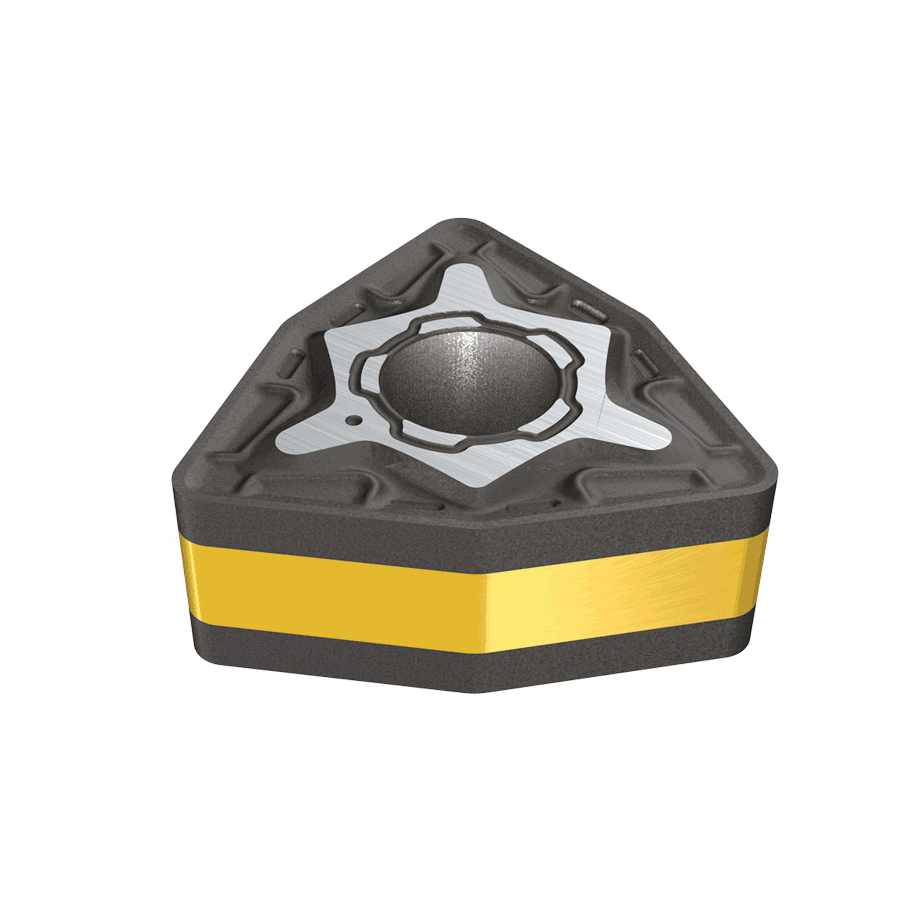

Iscar 5567521 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 332-M3P IC250, WNMG Insert, Material Grade: M, P, 332 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC250
Invoice description:
Wnmg 332-m3p Ic8250
Factory Order

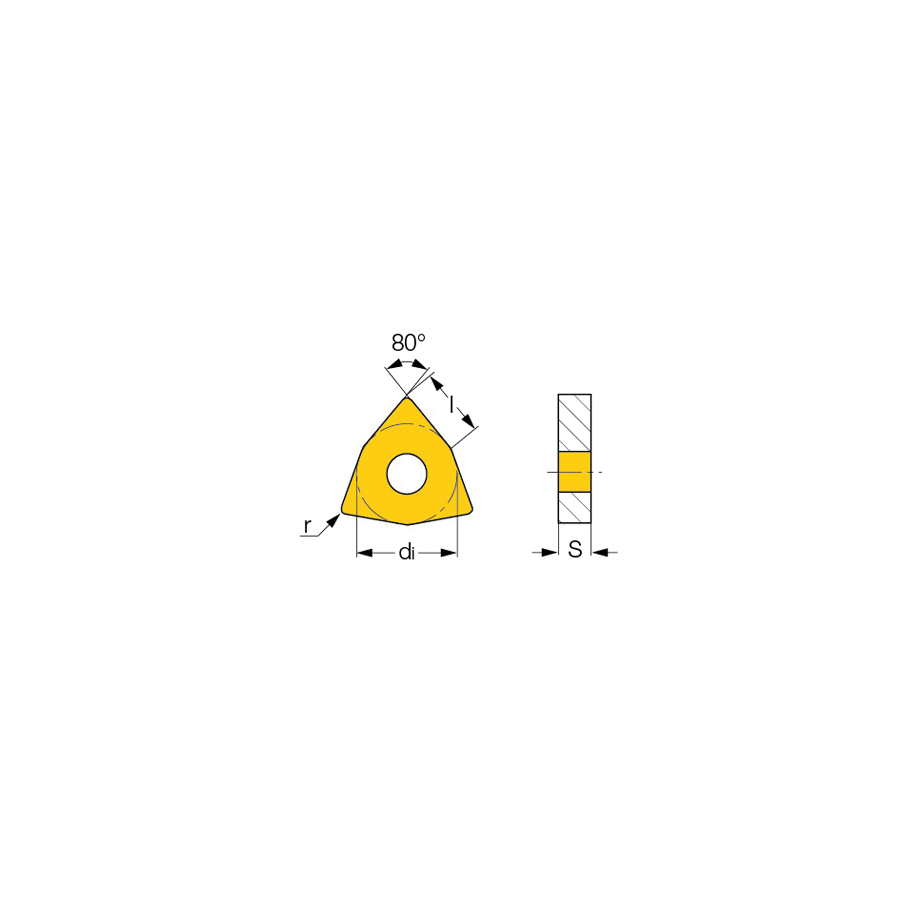

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 332 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, M3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC250, ANSI Code: WNMG 332-M3P IC250, ISO Code: WNMG 060408-M3P IC250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- For medium machining conditions on steel
- Low cutting forces due to positive rake, provide smooth cutting
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 332-M3P IC250
ChipbreakerM3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleWNMG
ISO CodeWNMG 060408-M3P IC250
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
