Iscar ISCAR 5566988

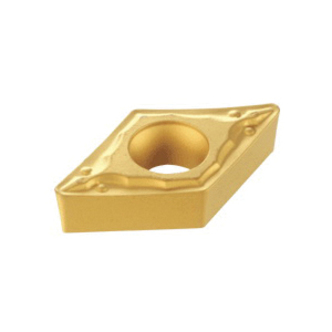

Iscar 5566988 ISOTURN Turning Insert, ANSI Code: DCMT 3-2-PF IC6015, DCMT Insert, Material Grade: M, 3-2 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6015
Invoice description:
Dcmt 3-2-pf Ic6015
Factory Order
Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 3-2 Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, PF Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC6015, ANSI Code: DCMT 3-2-PF IC6015, ISO Code: DCMT 11T308-PF IC6015, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Used for semi-finishing and finishing applications on soft materials and exotic alloys
- Positive rake, low cutting forces
- IC6015 grade used for finishing and medium turning of stainless steel at high cutting speed
- Features long tool life and excellent repeatability
Specifications
ANSI CodeDCMT 3-2-PF IC6015
ChipbreakerPF
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-2
Insert StyleDCMT
ISO CodeDCMT 11T308-PF IC6015
Manufacturers GradeIC6015
MaterialCarbide
Material GradeM
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
