Iscar ISCAR 5566930

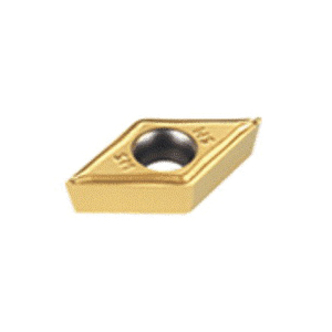

Iscar 5566930 ISOTURN 1-Sided Turning Insert, ANSI Code: DCMT 3-1-SM IC6025, DCMT Insert, Material Grade: M, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6025
Factory Order

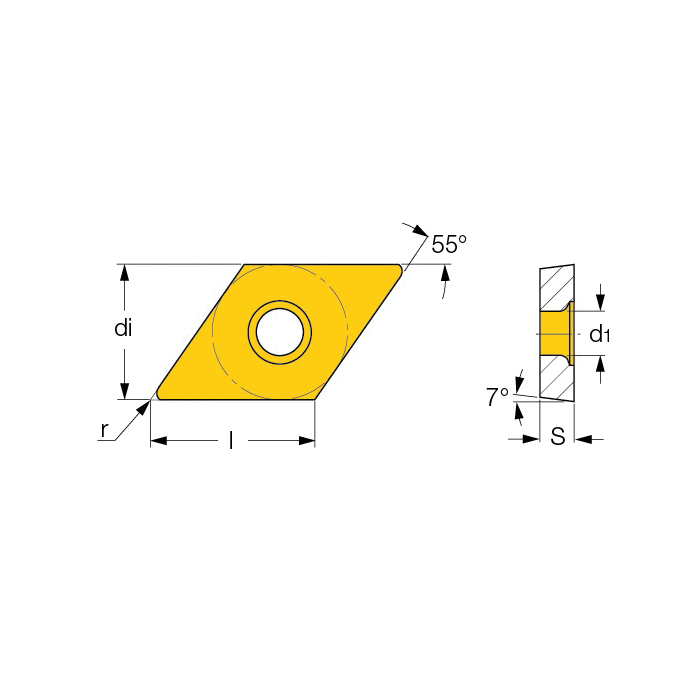

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCMT Insert, 3-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC6025, ANSI Code: DCMT 3-1-SM IC6025, ISO Code: DCMT 11T304-SM IC6025, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 3-1-SM IC6025
ChipbreakerSM
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCMT
ISO CodeDCMT 11T304-SM IC6025
Manufacturers GradeIC6025
MaterialCarbide
Material GradeM
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
