Iscar ISCAR 5566871

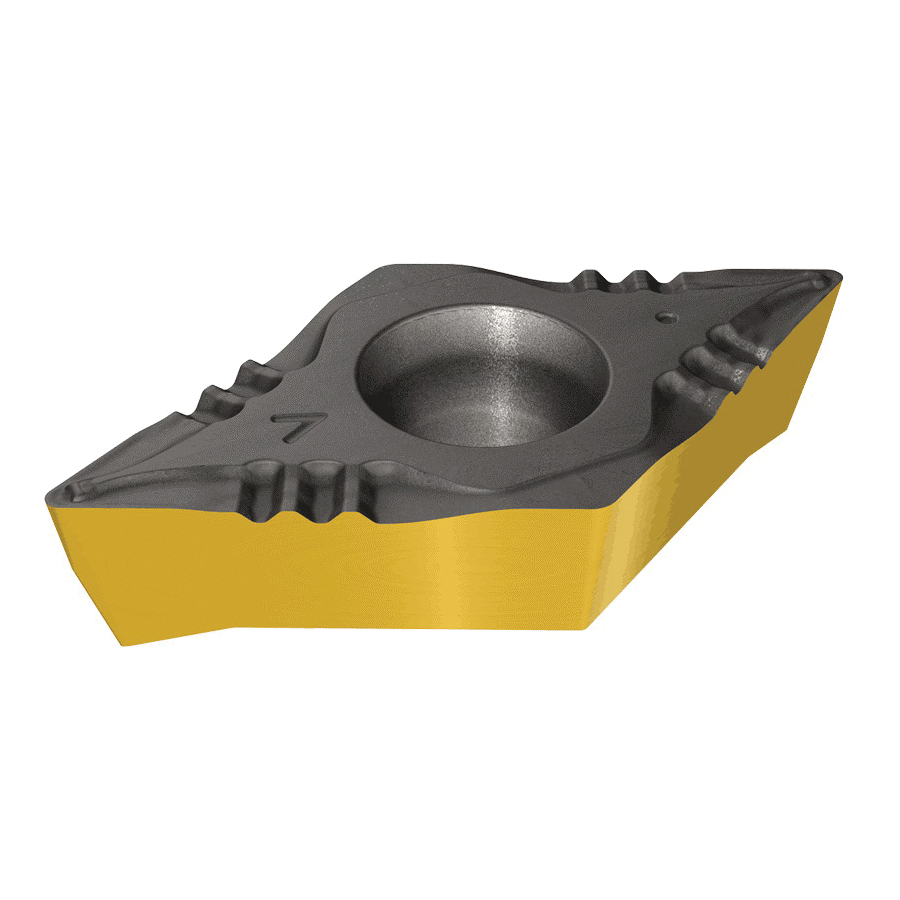

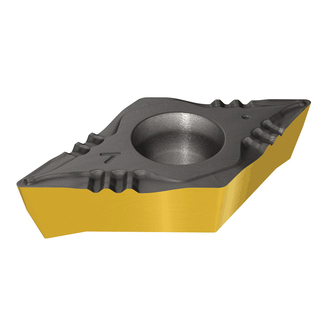

Iscar 5566871 1-Sided Turning Insert, ANSI Code: DCMT 3-0-F3P IC8250, DCMT Insert, Material Grade: M, P, 3-0 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250

Invoice description: Dcmt 3-0-f3p Ic8250

UNSPSC: 23242107

Manufacturer PN: 5566871

^$16.87 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

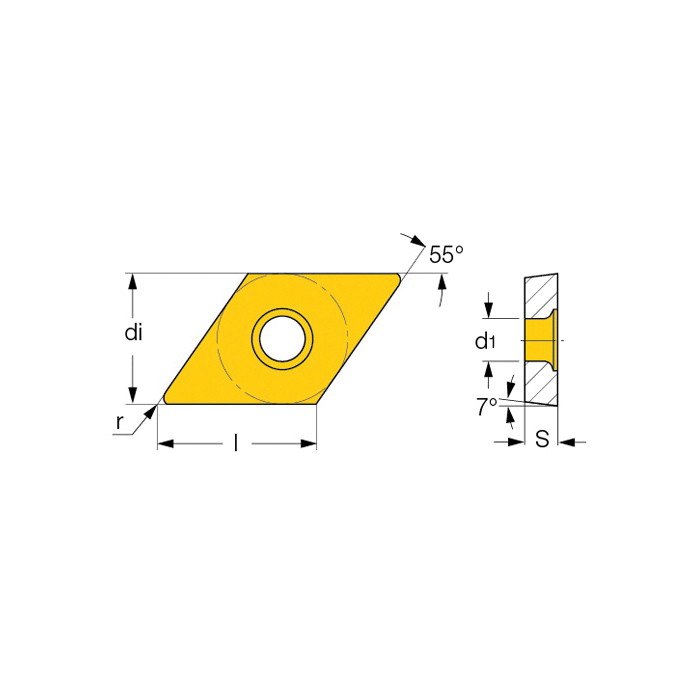

Iscar Turning Insert, 1-Sided, DCMT Insert, 3-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 3.97 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, F3P Chipbreaker, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: DCMT 3-0-F3P IC8250, ISO Code: DCMT 11T302-F3P IC8250, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

Features
Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life
The F3P chipbreaker has positive rake angles to allow smooth cutting and to reduce the cutting forces, thus reducing wear and increasing the tool life dramatically
IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
