Iscar ISCAR 5566869

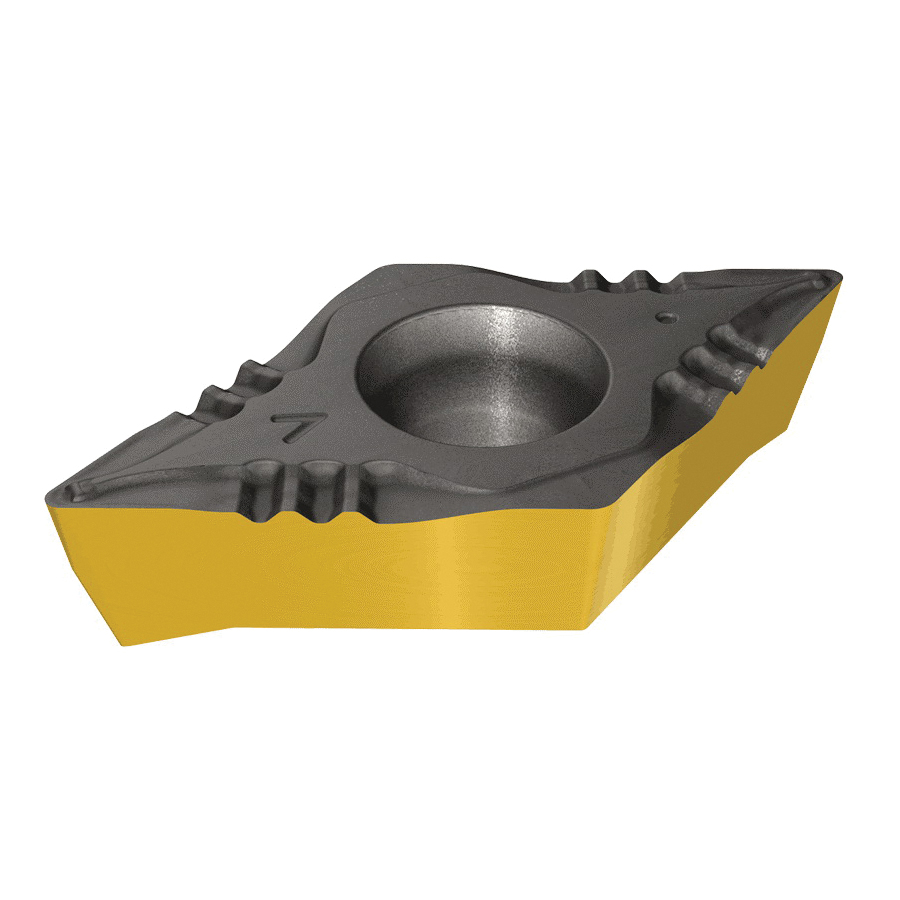

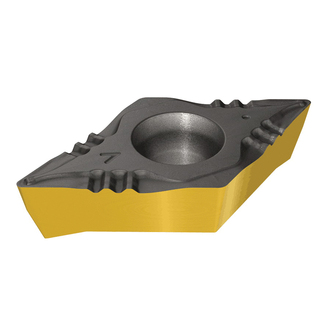

Iscar 5566869 ISOTURN Turning Insert, ANSI Code: DCMT 3-1-F39 IC8150, DCMT Insert, Material Grade: K, P, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Dcmt 3-1-f3p Ic8150
Factory Order
Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 3-1 Insert, Rhombic, 2 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, F39 Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: DCMT 3-1-F39 IC8150, ISO Code: DCMT 11T304-F3P IC8150, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Flank inserts for semi-finishing and finishing of steel
- Low cutting forces due to sharp cutting edge and a positive rake angle
- Providing very reliable performance and excellent tool life
- IC8150 grade excellent thermal stability and resistance to chipping and plastic deformation
- Recommended for high speed machining of steel at stable conditions
- Chipbreaker on one side, with hole and countersink
Specifications
ANSI CodeDCMT 3-1-F39 IC8150
ChipbreakerF39
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCMT
ISO CodeDCMT 11T304-F3P IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
