Iscar ISCAR 5566822
Iscar 5566822 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG-432-F3P IC8250, DNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Dnmg 432-f3p Ic8250
Factory Order

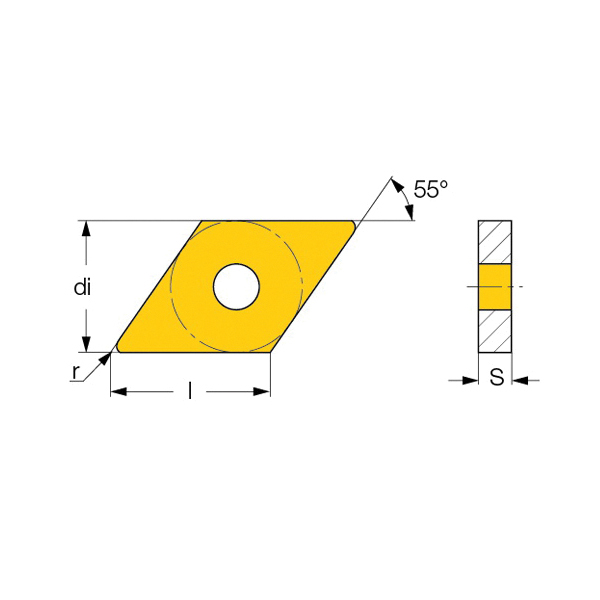

Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, F3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: DNMG-432-F3P IC8250, ISO Code: DNMG 150408-F3P IC8250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- The F3P chipbreaker has positive rake angles to allow smooth cutting and to reduce the cutting forces, thus reducing wear and increasing the tool life dramatically
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDNMG-432-F3P IC8250
ChipbreakerF3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-F3P IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
