Iscar ISCAR 5566812

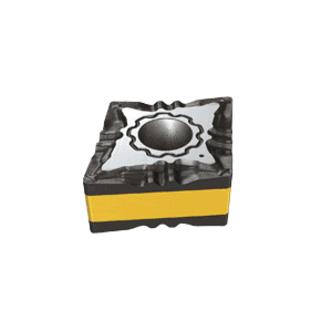

Iscar 5566812 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-F3P IC8150, CNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Cnmg 432-f3p Ic8150 Turning Insert 10/pk
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5566812
$14.37 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, F3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: CNMG 432-F3P IC8150, ISO Code: CNMG 120408-F3P IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationFacing Applications
ANSI CodeCNMG 432-F3P IC8150
ChipbreakerF3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-F3P IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
