Iscar ISCAR 5566750

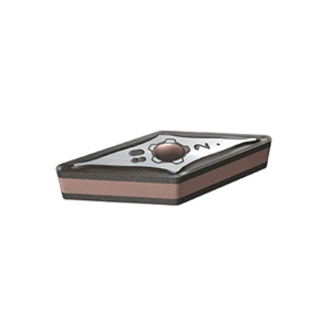

Iscar 5566750 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 3323-M IC806, VNMG Insert, Material Grade: S, 332 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On High Temperature Alloys, Carbide, Manufacturers Grade: IC806
Invoice description:
Vnmg 332-m3m Ic806
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 332 Insert, Rhombic, 1.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, M3M Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC806, ANSI Code: VNMG 3323-M IC806, ISO Code: VNMG 160408-M3M IC806, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-AlTiN "SUMO TEC" Coated, Material Grade: S, For Use On: High Temperature Alloys
Features
- First choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- IC806 grade suitable for turning inconel at low to medium cutting speeds
- Chipbreaker on both sides with hole
Specifications
ANSI CodeVNMG 3323-M IC806
ChipbreakerM3M
Corner Radius0.8 mm
FinishPVD-AlTiN "SUMO TEC" Coated
For Use OnHigh Temperature Alloys
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleVNMG
ISO CodeVNMG 160408-M3M IC806
Manufacturers GradeIC806
MaterialCarbide
Material GradeS
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
