Iscar ISCAR 5566749

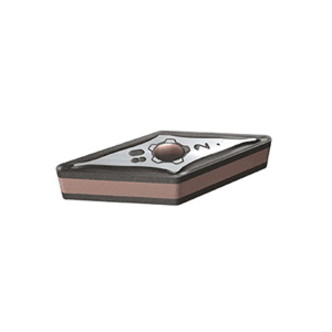

Iscar 5566749 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 331-M3M IC806, VNMG Insert, Material Grade: S, 331 Insert, Rhombic Shape, Positive Rake, For Use On High Temperature Alloys, Carbide, Manufacturers Grade: IC806

Invoice description: Vnmg 331-m3m Ic806 Turning Insert

Pack Size: 10
UNSPSC: 23242107
Manufacturer PN: 5566749
$20.67 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 331 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, Positive Rake, M3M Chipbreaker, 0.016 in Corner Radius, Manufacturers Grade: IC806, ANSI Code: VNMG 331-M3M IC806, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-AlTiN "SUMO TEC" Coated, Material Grade: S, For Use On: High Temperature Alloys

  • Features

  • First choice for machining stainless and low carbon steel
  • Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
  • IC806 grade suitable for turning inconel at low to medium cutting speeds
  • Chipbreaker on both sides with hole

Specifications

ANSI CodeVNMG 331-M3M IC806
ChipbreakerM3M
Corner Radius0.016 in
FinishPVD-AlTiN "SUMO TEC" Coated
For Use OnHigh Temperature Alloys
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleVNMG
Manufacturers GradeIC806
MaterialCarbide
Material GradeS
Maximum Depth of Cut0.118 in
RakePositive
Relief Angle0 deg
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Type2-Sided

Additional Information

Country of OriginIL
