Iscar ISCAR 5566745

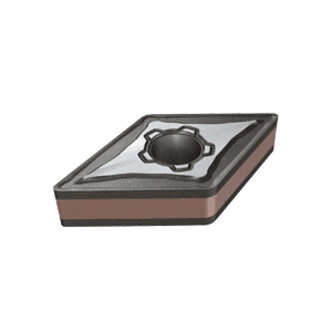

Iscar 5566745 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432-M3M IC806, DNMG Insert, Material Grade: S, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On High Temperature Alloys, Carbide, Manufacturers Grade: IC806
Invoice description:
Dnmg 432-m3m Ic806 Turning Insert
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5566745
$17.81 EA
Factory OrderEstimated to ship in 7 days
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, M3M Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC806, ANSI Code: DNMG 432-M3M IC806, ISO Code: DNMG 150408-M3M IC806, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-AlTiN "SUMO TEC" Coated, Material Grade: S, For Use On: High Temperature Alloys
Features
- Double-sided 55 deg rhombic inserts, first choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- Chipbreaker on both sides with hole
Specifications
ANSI CodeDNMG 432-M3M IC806
ChipbreakerM3M
Corner Radius0.8 mm
FinishPVD-AlTiN "SUMO TEC" Coated
For Use OnHigh Temperature Alloys
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-M3M IC806
Manufacturers GradeIC806
MaterialCarbide
Material GradeS
Maximum Depth of Cut5 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
