Iscar ISCAR 5560579

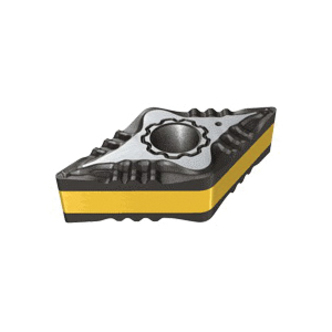

Iscar 5560579 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG-332-F3P IC8250, DNMG Insert, Material Grade: M, P, 332 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Dnmg 332-f3p Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Positive Rake, F3P Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC8250, ANSI Code: DNMG-332-F3P IC8250, ISO Code: DNMG 110408-F3P IC8250, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- The F3P chipbreaker has positive rake angles to allow smooth cutting and to reduce the cutting forces, thus reducing wear and increasing the tool life dramatically
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDNMG-332-F3P IC8250
ChipbreakerF3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.15 in
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleDNMG
ISO CodeDNMG 110408-F3P IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
