Iscar ISCAR 5560578

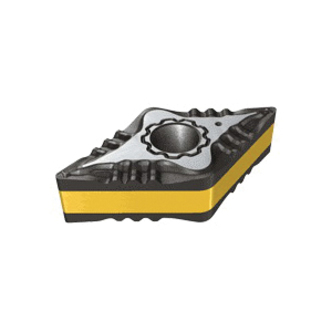

Iscar 5560578 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 332-F3P IC8150, DNMG Insert, Material Grade: K, P, 332 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Dnmg 332-f3p Ic8150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Positive Rake, F3P Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: DNMG 332-F3P IC8150, ISO Code: DNMG 110408-F3P IC8150, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Recommended for high speed machining of steel at stable conditions
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDNMG 332-F3P IC8150
ChipbreakerF3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter3.81 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleDNMG
ISO CodeDNMG 110408-F3P IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
