Iscar ISCAR 5550566

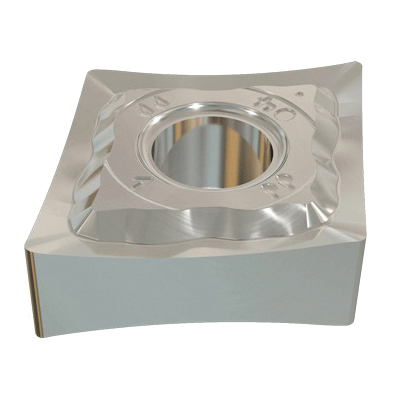

Iscar 5550566 ISOTURN Turning Insert, ANSI Code: CNGG 120408-PP, CNGG Insert, 120408 Insert, Rhombic Shape, Positive Rake, For Use On Aluminum Alloys, Soft, Low Carbon Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC806
Invoice description:
Cngg 432-pp Ic806 Turning Insert
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5550566
$19.97 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, Series: ISOTURN, CNGG Insert, 120408 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC806, ANSI Code: CNGG 120408-PP, ISO Code: CNMG/CNGG-PP, 80 deg Included Angle, For Use On: Aluminum Alloys, Soft, Low Carbon Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided 80 deg rhombic inserts with a positive rake angle and sharp, positive radial edge
- Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys
Specifications
ApplicationISO Turning
ANSI CodeCNGG 120408-PP
Corner Radius0.8 mm
For Use OnAluminum Alloys, Soft, Low Carbon Steel, Stainless Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleCNGG
ISO CodeCNMG/CNGG-PP
Manufacturers GradeIC806
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
