Iscar ISCAR 5550526

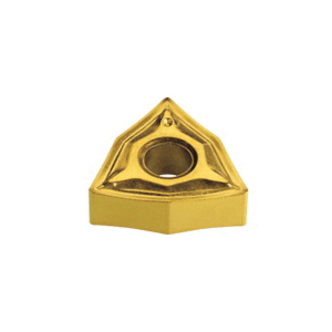

Iscar 5550526 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 331-NF IC8250, WNMG Insert, Material Grade: M, P, 331 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Wnmg 331-nf Ic8250
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 331 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: WNMG 331-NF IC8250, ISO Code: WNMG 060404-NF IC8250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 331-NF IC8250
ChipbreakerNF
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleWNMG
ISO CodeWNMG 060404-NF IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
