Iscar ISCAR 5550500

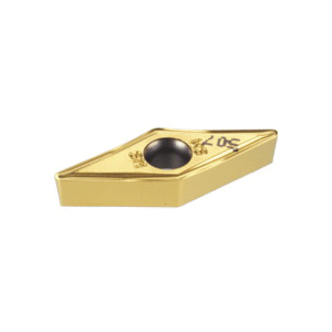

Iscar 5550500 ISOTURN Turning Insert, ANSI Code: VCMT 160412-SM, VCMT Insert, 160412 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC807
Invoice description:
Vcmt 333-sm Ic807
Factory Order
Iscar Turning Insert, Series: ISOTURN, VCMT Insert, 160412 Insert, Rhombic, 9.52 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 1.2 mm Corner Radius, Manufacturers Grade: IC807, ANSI Code: VCMT 160412-SM, ISO Code: VCMT-SM, 35 deg Included Angle, 7 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys
Features
- 35 deg rhombic 7 deg positive flank inserts used for semi-finish and finish turning
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
Specifications
ApplicationISO Turning
ANSI CodeVCMT 160412-SM
Corner Radius1.2 mm
For Use OnSoft Materials and Exotic Alloys
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size160412
Insert StyleVCMT
ISO CodeVCMT-SM
Manufacturers GradeIC807
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
