Iscar ISCAR 5550496

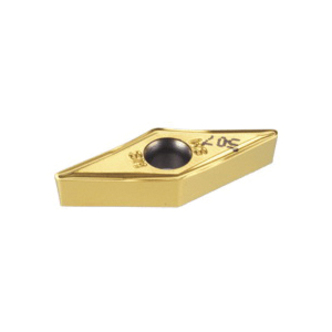

Iscar 5550496 1-Sided Turning Insert, ANSI Code: VCMT 221-SM IC807, VCMT Insert, Material Grade: H, K, M, P, S, 221 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Vcmt 221-sm Ic807
Factory Order

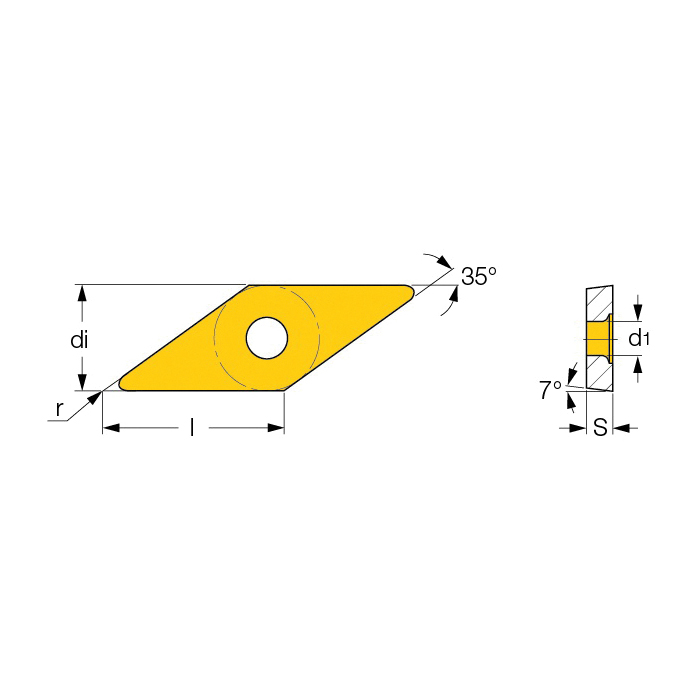

Iscar Turning Insert, 1-Sided, VCMT Insert, 221 Insert, Rhombic, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC807, ANSI Code: VCMT 221-SM IC807, ISO Code: VCMT 110304-SM IC807, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVCMT 221-SM IC807
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size221
Insert StyleVCMT
ISO CodeVCMT 110304-SM IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
ShapeRhombic
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
