Iscar ISCAR 5550471

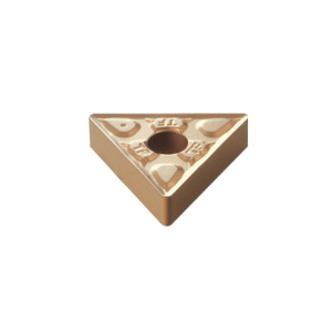

Iscar 5550471 2-Sided Turning Insert, ANSI Code: TNMG 432-TF IC807, TNMG Insert, Material Grade: H, K, M, P, S, 432 Insert, Triangular Shape, 22 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Tnmg 432-tf Ic807
Factory Order
Iscar Turning Insert, 2-Sided, TNMG Insert, 432 Insert, Triangular, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: TNMG 432-TF IC807, ISO Code: TNMG 220408-TF IC807, 60 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeTNMG 432-TF IC807
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.203 in
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleTNMG
ISO CodeTNMG 220408-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size22
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
