Iscar ISCAR 5550405

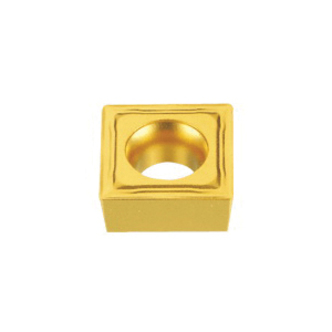

Iscar 5550405 ISOTURN Turning Insert, ANSI Code: SCMT 431-14 IC8250, SCMT Insert, Material Grade: M, P, 431 Insert, Squared Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Scmt 431-14 Ic8250
Factory Order
Iscar Turning Insert, Series: ISOTURN, SCMT Insert, 431 Insert, Squared, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Positive Rake, 0.4 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: SCMT 431-14 IC8250, ISO Code: SCMT 120404-14 IC8250, 90 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
- IC8250 grade recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeSCMT 431-14 IC8250
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter5.5 mm
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleSCMT
ISO CodeSCMT 120404-14 IC8250
Length12.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeSquared
Thickness4.76 mm
Width12.7 mm
Additional Information
Country of OriginIL
