Iscar ISCAR 5550396

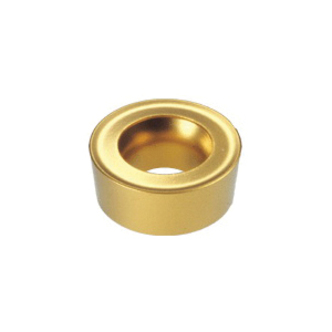

Iscar 5550396 ISOTURN Turning Insert, ANSI Code: RCMT 2006M0-14 IC8150, RCMT Insert, Material Grade: K, P, 2006M0 Insert, Round Shape, 20 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150

UNSPSC: 23242107
Manufacturer PN: 5550396
$31.20 EA
Factory Order
Estimated to ship in 14 days
QTY:

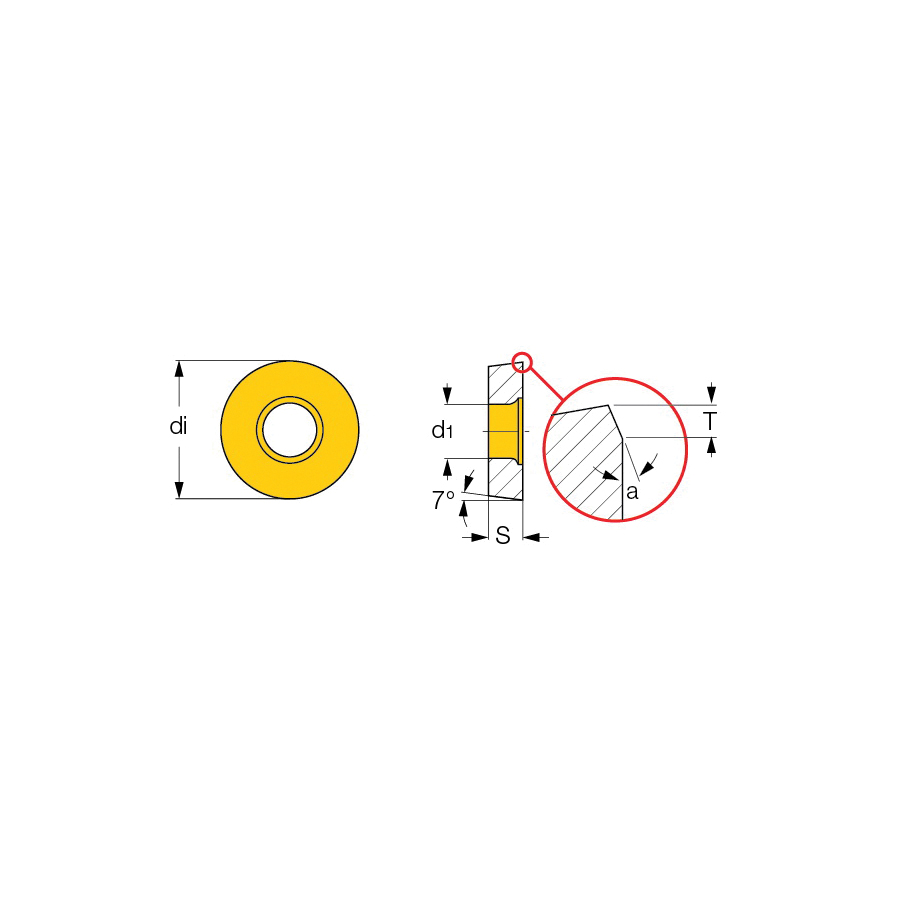

Iscar Turning Insert, Series: ISOTURN, RCMT Insert, 2006M0 Insert, Round, 10 mm Maximum Depth of Cut, 20 mm Inscribed Circle, 6.35 mm Thickness, 20 Seat, Positive Rake, 6.5 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: RCMT 2006M0-14 IC8150, ISO Code: RCMT 2006M0-14 IC8150, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • Positive flank for medium and finish profiling on a wide range of materials
  • Chipbreaker on one side, with hole and countersink

Specifications

ANSI CodeRCMT 2006M0-14 IC8150
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter6.5 mm
Inscribed Circle20 mm
Insert Size2006M0
Insert StyleRCMT
ISO CodeRCMT 2006M0-14 IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut10 mm
RakePositive
Relief Angle7 deg
Seat Size20
SeriesISOTURN
ShapeRound
Thickness6.35 mm
