Iscar ISCAR 5550392

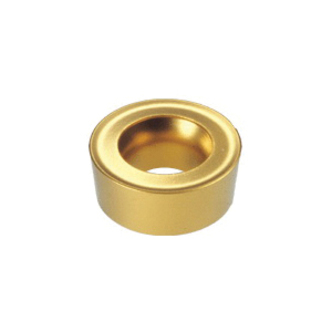

Iscar 5550392 ISOTURN 1-Sided Turning Insert, ANSI Code: RCMT 1204M-14 IC8150, RCMT Insert, Material Grade: K, P, 1204M0 Insert, Round Shape, 12 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150

UNSPSC: 23242107
Manufacturer PN: 5550392
$15.54 EA
Factory Order
Estimated to ship in 14 days
QTY:

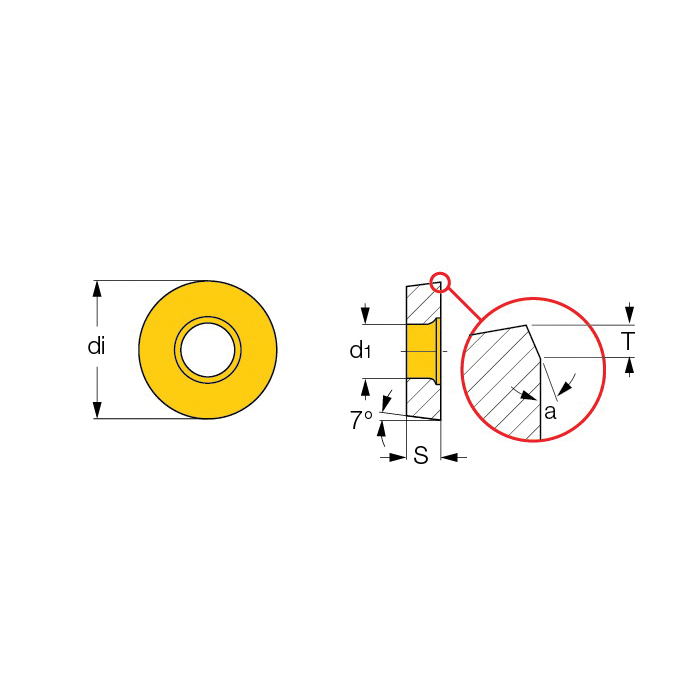

Iscar Turning Insert, 1-Sided, Series: ISOTURN, RCMT Insert, 1204M0 Insert, Round, 6 mm Maximum Depth of Cut, 12 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, 14 Chipbreaker, 5.5 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: RCMT 1204M-14 IC8150, ISO Code: RCMT 1204M0-14 IC8150, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • Positive flank
  • IC8150 grade a hard substrate with a cobalt enriched layer, MTCVD TiCN and alpha Al2O3 CVD coating
  • Excellent thermal stability and resistance to chipping and plastic deformation
  • Recommended for high speed machining of steel at stable conditions

Specifications

ApplicationHigh Speed Machining Applications
ANSI CodeRCMT 1204M-14 IC8150
Chipbreaker14
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter5.5 mm
Inscribed Circle12 mm
Insert Size1204M0
Insert StyleRCMT
ISO CodeRCMT 1204M0-14 IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut6 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeRound
Thickness4.76 mm
Type1-Sided
