Iscar ISCAR 5550286

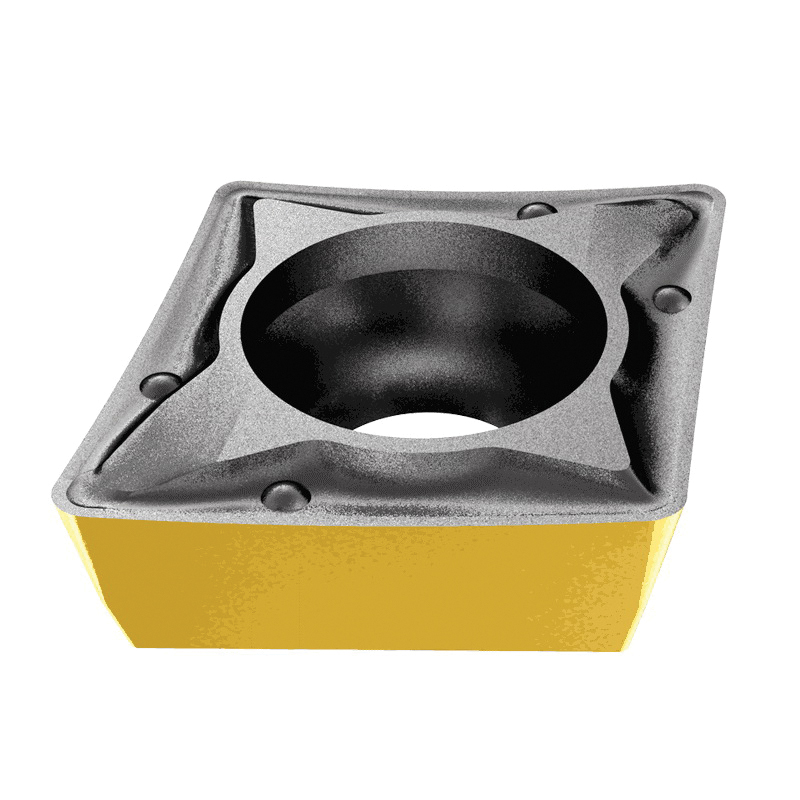

Iscar 5550286 ISOTURN Turning Insert, ANSI Code: CPMT 2-2-PF, CPMT Insert, 2-2 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC807
Invoice description:
Cpmt 2-2-pf Ic807
Factory Order
Iscar Turning Insert, Series: ISOTURN, CPMT Insert, 2-2 Insert, Rhombic, 6.35 mm Inscribed Circle, 2.38 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC807, ANSI Code: CPMT 2-2-PF, ISO Code: CPMT-PF, 80 deg Included Angle, 11 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys
Features
- 80 deg rhombic inserts with 11 deg positive flank for semi-finishing and finishing applications on soft materials and exotic alloys
- Positive rake angle, low cutting forces
Specifications
ApplicationISO Turning
ANSI CodeCPMT 2-2-PF
Corner Radius0.8 mm
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-2
Insert StyleCPMT
ISO CodeCPMT-PF
Manufacturers GradeIC807
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Additional Information
Standards/ApprovalISO 13399
