Iscar ISCAR 5550265

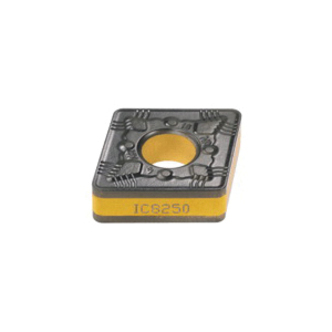

Iscar 5550265 ISOTURN Turning Insert, ANSI Code: CNMG 644-NR, CNMG Insert, 644 Insert, Rhombic Shape, Manufacturers Grade: IC807
Invoice description:
Cnmg 644-nr Ic807
Factory Order
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 644 Insert, Rhombic, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.063 in Corner Radius, Manufacturers Grade: IC807, ANSI Code: CNMG 644-NR, ISO Code: CNMG-NR, 80 deg Included Angle
Features
- Double sided 80 deg rhombic inserts with a special chipformer for heavy machining
Specifications
ApplicationISO Turning and External 100 deg Diamond 75 deg Approach
ANSI CodeCNMG 644-NR
Corner Radius0.063 in
Included Angle80 deg
Inscribed Circle3/4 in
Insert Size644
Insert StyleCNMG
ISO CodeCNMG-NR
Manufacturers GradeIC807
SeriesISOTURN
ShapeRhombic
Thickness1/4 in
Additional Information
Standards/ApprovalISO 13399
