Iscar ISCAR 5550261

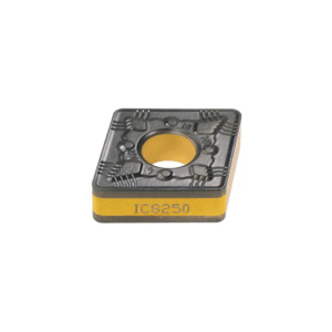

Iscar 5550261 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 544-NR IC5005, CNMG Insert, Material Grade: H, K, P, 544 Insert, Rhombic Shape, 16 Seat, For Use On Steel, Cast Iron and Hardened Steel, Carbide, Manufacturers Grade: IC5005
Invoice description:
Cnmg 544-nr Ic5005
Factory Order

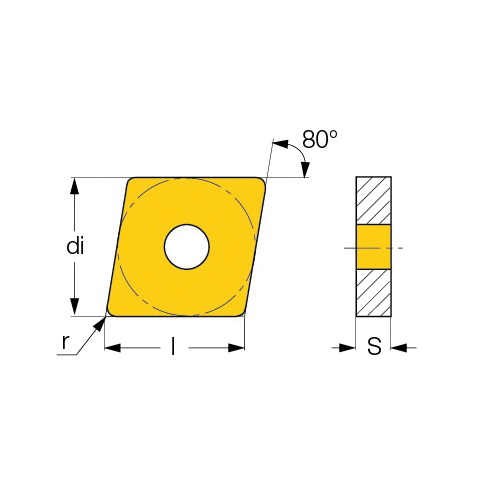

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 544 Insert, Rhombic, 7 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, NR Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC5005, ANSI Code: CNMG 544-NR IC5005, ISO Code: CNMG 160616-NR IC5005, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, For Use On: Steel, Cast Iron and Hardened Steel
Features
- Special chipformer for heavy machining
- IC5005 grade a very hard substrate, improved MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended mainly for nodular cast iron at stable or slightly unstable conditions
- Can also be used successfully on gray cast iron
Specifications
ANSI CodeCNMG 544-NR IC5005
ChipbreakerNR
Corner Radius1.6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel, Cast Iron and Hardened Steel
Included Angle80 deg
Inscribed Circle15.88 mm
Insert Size544
Insert StyleCNMG
ISO CodeCNMG 160616-NR IC5005
Manufacturers GradeIC5005
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut7 mm
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
