Iscar ISCAR 5550256

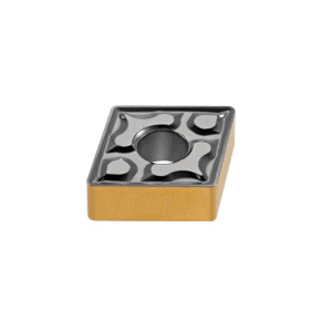

Iscar 5550256 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 542-TF IC807, CNMG Insert, Material Grade: H, K, M, P, S, 542 Insert, Rhombic Shape, 16 Seat, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys, Carbide
Invoice description:
Cnmg 542-tf Ic807
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 542 Insert, Rhombic, 6 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, TF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC807, ANSI Code: CNMG 542-TF IC807, ISO Code: CNMG 160608-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Special design reduces cratering
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeCNMG 542-TF IC807
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle15.88 mm
Insert Size542
Insert StyleCNMG
ISO CodeCNMG 160608-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut6 mm
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
