Iscar ISCAR 5550223

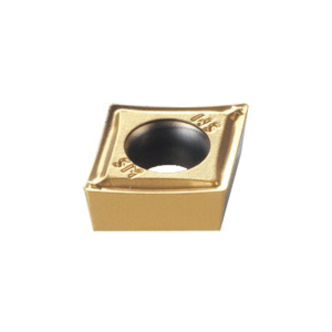

Iscar 5550223 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 431SM IC807, CCMT Insert, Material Grade: H, K, M, P, S, 431 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Ccmt 431-sm Ic807
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5550223
$16.05 EA
Factory OrderEstimated to ship in 14 days
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 431 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 0.217 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: CCMT 431SM IC807, ISO Code: CCMT 120404-SM IC807, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 431SM IC807
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.217 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleCCMT
ISO CodeCCMT 120404-SM IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
