Iscar ISCAR 5550218

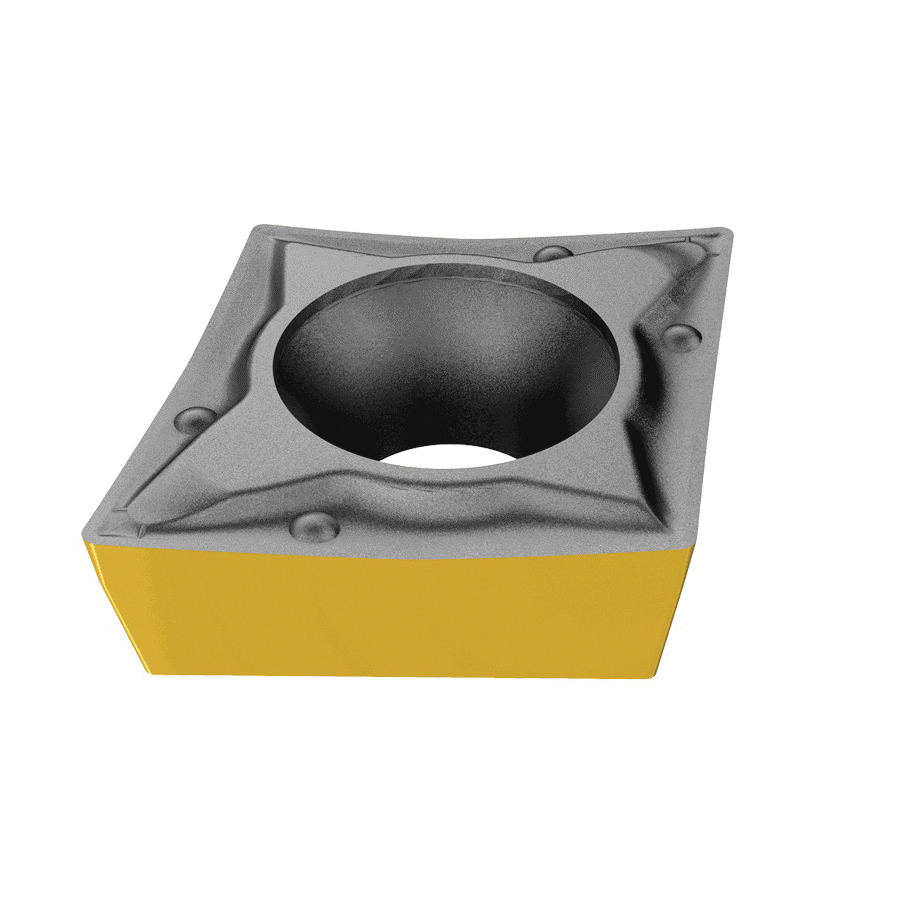

Iscar 5550218 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 3-1-PF IC807, CCMT Insert, Material Grade: H, K, M, P, S, 3-1 Insert, Rhombic Shape, 09 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Ccmt 3-1-pf Ic807
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 3-1 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC807, ANSI Code: CCMT 3-1-PF IC807, ISO Code: CCMT 09T304-PF IC807, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive flank
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 3-1-PF IC807
ChipbreakerPF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleCCMT
ISO CodeCCMT 09T304-PF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
