Iscar ISCAR 5550206

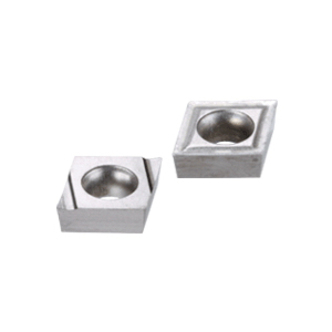

Iscar 5550206 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 2-0 IC8250, CCMT Insert, Material Grade: M, P, 2-0 Insert, Rhombic Shape, 06 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Ccmt 2-0 Ic8250
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 2-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, 0.2 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC8250, ANSI Code: CCMT 2-0 IC8250, ISO Code: CCMT 060202 IC8250, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 2-0 IC8250
Corner Radius0.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter2.8 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-0
Insert StyleCCMT
ISO CodeCCMT 060202 IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
