Iscar ISCAR 5540014

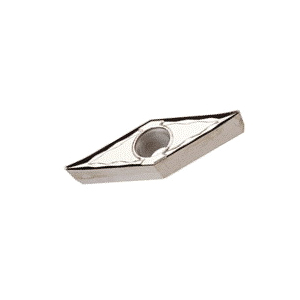

Iscar 5540014 ISOTURN 1-Sided Turning Insert, ANSI Code: VCGT220-AS IC20, VCGT Insert, Material Grade: H, K, M, N, S, 220 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Vcgt 220-as Ic20
Factory Order

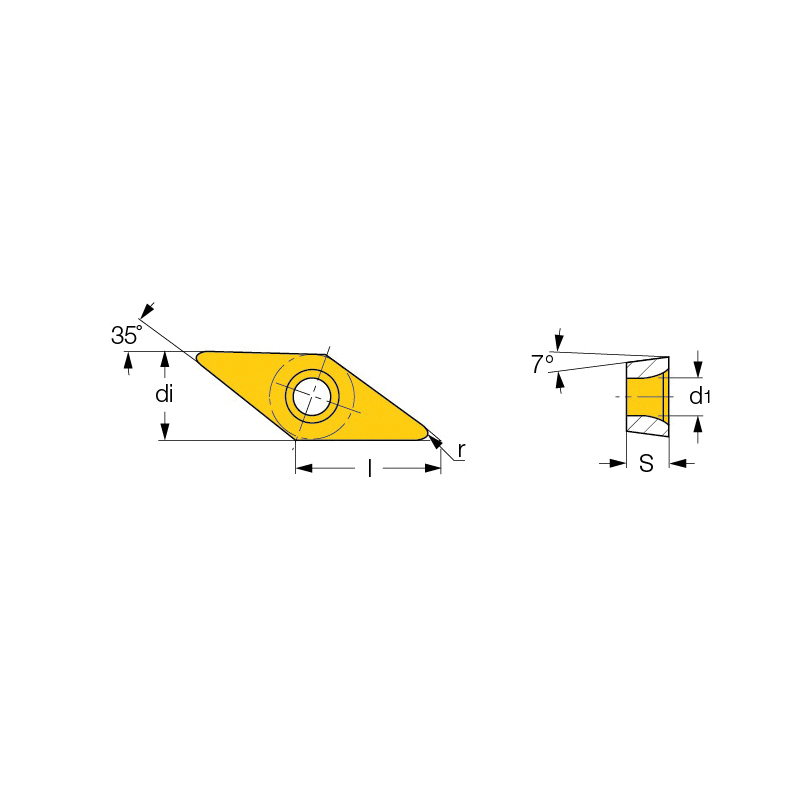

Iscar Turning Insert, 1-Sided, Series: ISOTURN, VCGT Insert, 220 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: VCGT220-AS IC20, ISO Code: VCGT 110302-AS IC20, 35 deg Included Angle, 7 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Very positive rake angle and sharp cutting edge for machining aluminum
- IC20 grade used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationMachining Applications
ANSI CodeVCGT220-AS IC20
ChipbreakerAS
Corner Radius0.2 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size220
Insert StyleVCGT
ISO CodeVCGT 110302-AS IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
Type1-Sided
