Iscar ISCAR 5510365

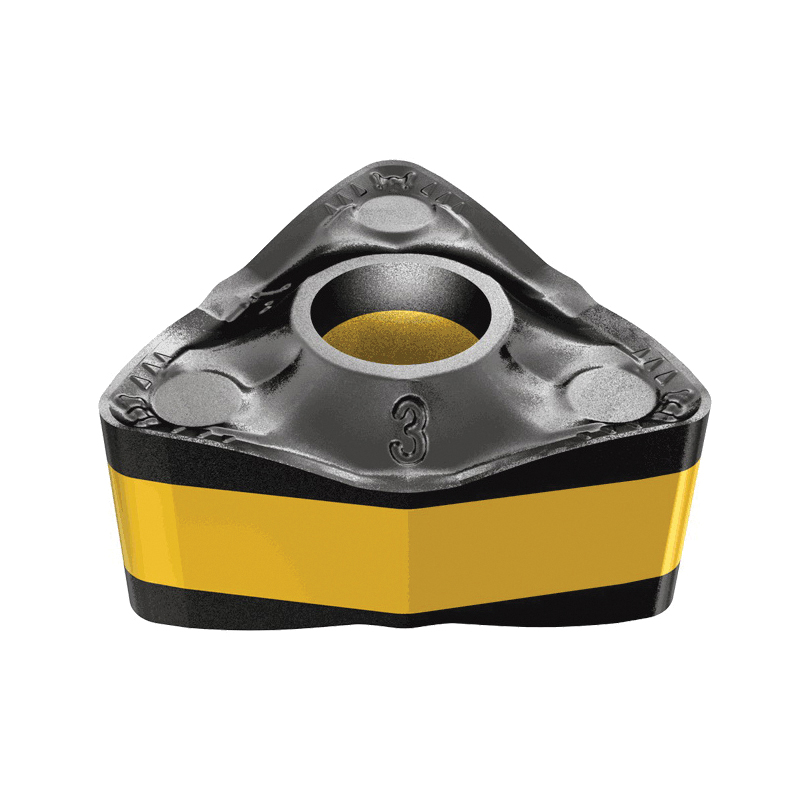

Iscar 5510365 HELITURN LD Turning Insert, ANSI Code: WNMX 060608-M3MW, WNMX Insert, 60608 Insert, Positive Rake, Manufacturers Grade: IC6025
Invoice description:
Wnmx 342-m3mw Ic6025
Factory Order
Iscar Turning Insert, Series: HELITURN LD, WNMX Insert, 60608 Insert, 9.52 mm Inscribed Circle, 4.41 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC6025, ANSI Code: WNMX 060608-M3MW, ISO Code: WNMX-M3/4MW, 80 deg Included Angle
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
- A wiper corner design produces a high surface finish even at high feed rates
- Used for heavy machining applications
Specifications
ApplicationISO Turning and External 80 deg Diamond 95 deg Approach
ANSI CodeWNMX 060608-M3MW
Corner Radius0.8 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size60608
Insert StyleWNMX
ISO CodeWNMX-M3/4MW
Manufacturers GradeIC6025
RakePositive
SeriesHELITURN LD
Thickness4.41 mm
Additional Information
Standards/ApprovalISO 13399
