Iscar ISCAR 5510358

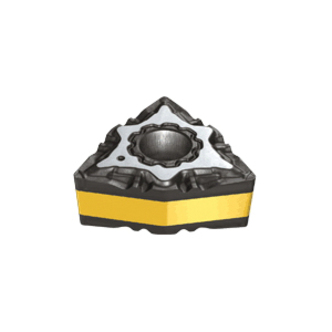

Iscar 5510358 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 332-F3P IC8150, WNMG Insert, Material Grade: K, P, 332 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Wnmg 332-f3p Ic8150
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 332 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, F3P Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: WNMG 332-F3P IC8150, ISO Code: WNMG 060408-F3P IC8150, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 332-F3P IC8150
ChipbreakerF3P
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleWNMG
ISO CodeWNMG 060408-F3P IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
