Iscar ISCAR 5510313

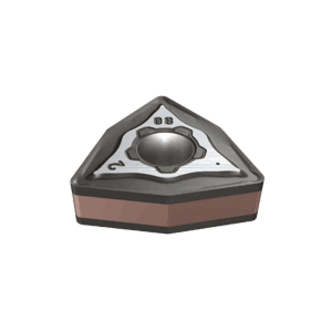

Iscar 5510313 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 332-M3M IC6015, WNMG Insert, Material Grade: M, 332 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6015
Invoice description:
Wnmg 332-m3m Ic6015
Factory Order

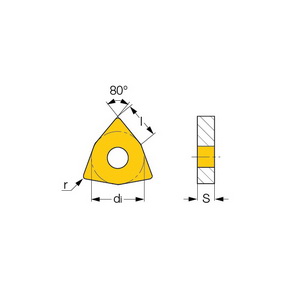

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 332 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, M3M Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: IC6015, ANSI Code: WNMG 332-M3M IC6015, ISO Code: WNMG 060408-M3M IC6015, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- First choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces
- Providing very reliable performance and excellent tool life
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 332-M3M IC6015
ChipbreakerM3M
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter3.81 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleWNMG
ISO CodeWNMG 060408-M3M IC6015
Manufacturers GradeIC6015
MaterialCarbide
Material GradeM
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
