Iscar ISCAR 5510284

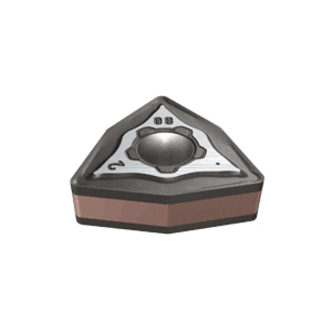

Iscar 5510284 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 333-M3M IC6015, WNMG Insert, Material Grade: M, 333 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6015
Invoice description:
Wnmg 333-m3m Ic6015
Factory Order

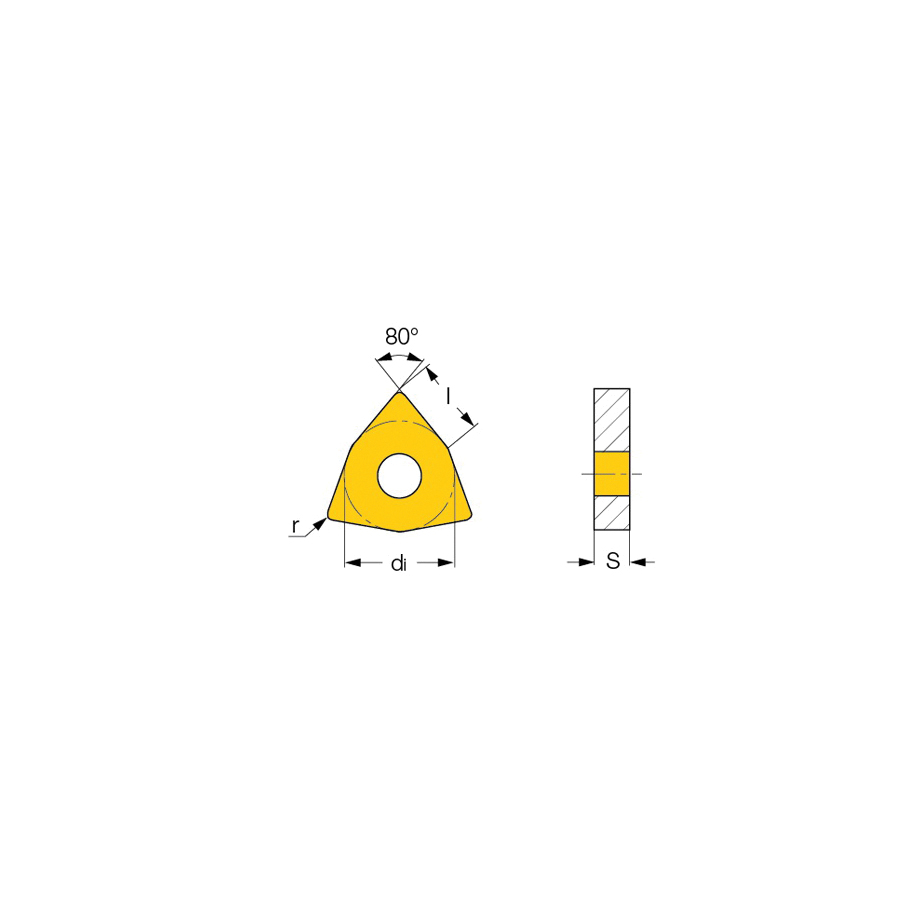

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 333 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, M3M Chipbreaker, 1.2 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: IC6015, ANSI Code: WNMG 333-M3M IC6015, ISO Code: WNMG 060412-M3M IC6015, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- First choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- IC6015 grade used for finishing and medium turning of stainless steel at high cutting speed
- Features long tool life and excellent repeatability
- Chipbreaker on both sides, with hole
Specifications
ANSI CodeWNMG 333-M3M IC6015
ChipbreakerM3M
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter3.81 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size333
Insert StyleWNMG
ISO CodeWNMG 060412-M3M IC6015
Manufacturers GradeIC6015
MaterialCarbide
Material GradeM
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
