Iscar ISCAR 5510240

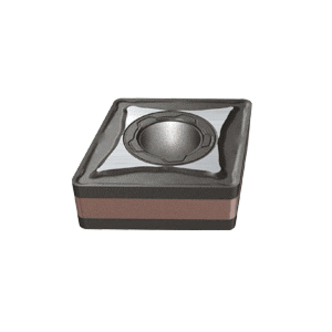

Iscar 5510240 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-M3M IC6015, CNMG Insert, Material Grade: M, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6015
Invoice description:
Cenm 432-m3m Ic6015
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, M3M Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC6015, ANSI Code: CNMG 432-M3M IC6015, ISO Code: CNMG 120408-M3M IC6015, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Double-sided 80 deg rhombic inserts, first choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- IC6015 grade a very hard substrate with a cobalt enriched outer layer and alpha Al2O3 coating
- Used for finishing and medium turning of stainless steel at high cutting speed
- Long tool life and excellent repeatability
- Chipbreaker on both sides, with hole
Specifications
ANSI CodeCNMG 432-M3M IC6015
ChipbreakerM3M
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-M3M IC6015
Manufacturers GradeIC6015
MaterialCarbide
Material GradeM
Maximum Depth of Cut5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
