Iscar ISCAR 5510202

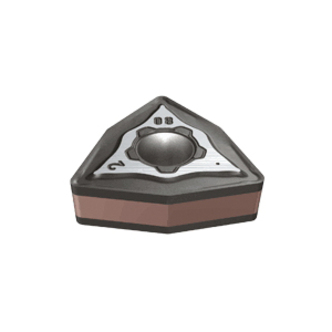

Iscar 5510202 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-M3M IC6025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6025
Invoice description:
Wnmg 432-m3m Ic6025
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, M3M Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC6025, ANSI Code: WNMG 432-M3M IC6025, ISO Code: WNMG 080408-M3M IC6025, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- Double-sided trigon inserts, first choice for machining stainless and low carbon steel
- Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 432-M3M IC6025
ChipbreakerM3M
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-M3M IC6025
Manufacturers GradeIC6025
MaterialCarbide
Material GradeM
Maximum Depth of Cut5 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
