Iscar ISCAR 5510091

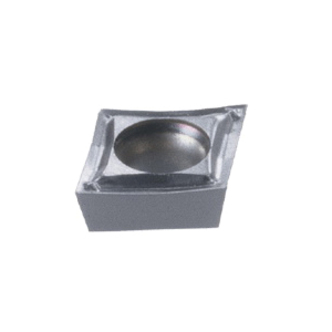

Iscar 5510091 ISOTURN Turning Insert, ANSI Code: CPGT 3-.004-SM, CPGT Insert, 3-0.004 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC907

Pack Size: 10
UNSPSC: 23242105
Manufacturer PN: 5510091
$21.34 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, CPGT Insert, 3-0.004 Insert, Rhombic, 3/8 in Inscribed Circle, 0.156 in Thickness, Positive Rake, 0.004 in Corner Radius, Manufacturers Grade: IC907, ANSI Code: CPGT 3-.004-SM, ISO Code: CPGT-SM, 80 deg Included Angle, 11 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys

  • Features

  • 80 deg rhombic 11 deg positive flank inserts used for semi-finish and finish turning
  • Chip breaking in moderate feed range
  • Positive rake, low cutting forces
  • Used for a wide range of materials including soft and exotic alloys

Specifications

ApplicationISO Turning
ANSI CodeCPGT 3-.004-SM
Corner Radius0.004 in
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3-0.004
Insert StyleCPGT
ISO CodeCPGT-SM
Manufacturers GradeIC907
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeRhombic
Thickness0.156 in
