Iscar ISCAR 5510088

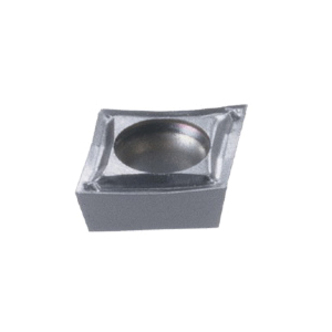

Iscar 5510088 ISOTURN Turning Insert, ANSI Code: CPGT 060201-SM, CPGT Insert, 60201 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC907

Pack Size: 10
UNSPSC: 23242105
Manufacturer PN: 5510088
$18.74 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, CPGT Insert, 60201 Insert, Rhombic, 6.35 mm Inscribed Circle, 2.38 mm Thickness, Positive Rake, 0.1 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CPGT 060201-SM, ISO Code: CPGT-SM, 80 deg Included Angle, 11 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys

  • Features

  • 80 deg rhombic 11 deg positive flank inserts used for semi-finish and finish turning
  • Chip breaking in moderate feed range
  • Positive rake, low cutting forces
  • Used for a wide range of materials including soft and exotic alloys

Specifications

ApplicationISO Turning
ANSI CodeCPGT 060201-SM
Corner Radius0.1 mm
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size60201
Insert StyleCPGT
ISO CodeCPGT-SM
Manufacturers GradeIC907
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
