Iscar ISCAR 5509903

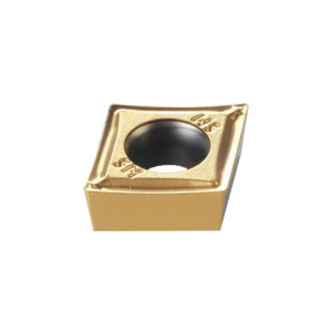

Iscar 5509903 ISOTURN Turning Insert, ANSI Code: CCMT 3-1-SM, CCMT Insert, 3-1 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC806
Invoice description:
Ccmt 3-1-sm Ic806 Turning Insert
Factory Order
Iscar Turning Insert, Series: ISOTURN, CCMT Insert, 3-1 Insert, Rhombic, 3/8 in Inscribed Circle, 0.156 in Thickness, Positive Rake, 0.016 in Corner Radius, Manufacturers Grade: IC806, ANSI Code: CCMT 3-1-SM, ISO Code: CCMT/CCGT-SM, 80 deg Included Angle, 7 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys
Features
- Single sided turning inserts for semi-finishing and finishing
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
Specifications
ApplicationISO Turning
ANSI CodeCCMT 3-1-SM
Corner Radius0.016 in
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3-1
Insert StyleCCMT
ISO CodeCCMT/CCGT-SM
Manufacturers GradeIC806
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeRhombic
Thickness0.156 in
Additional Information
Standards/ApprovalISO 13399
