Iscar ISCAR 5509501

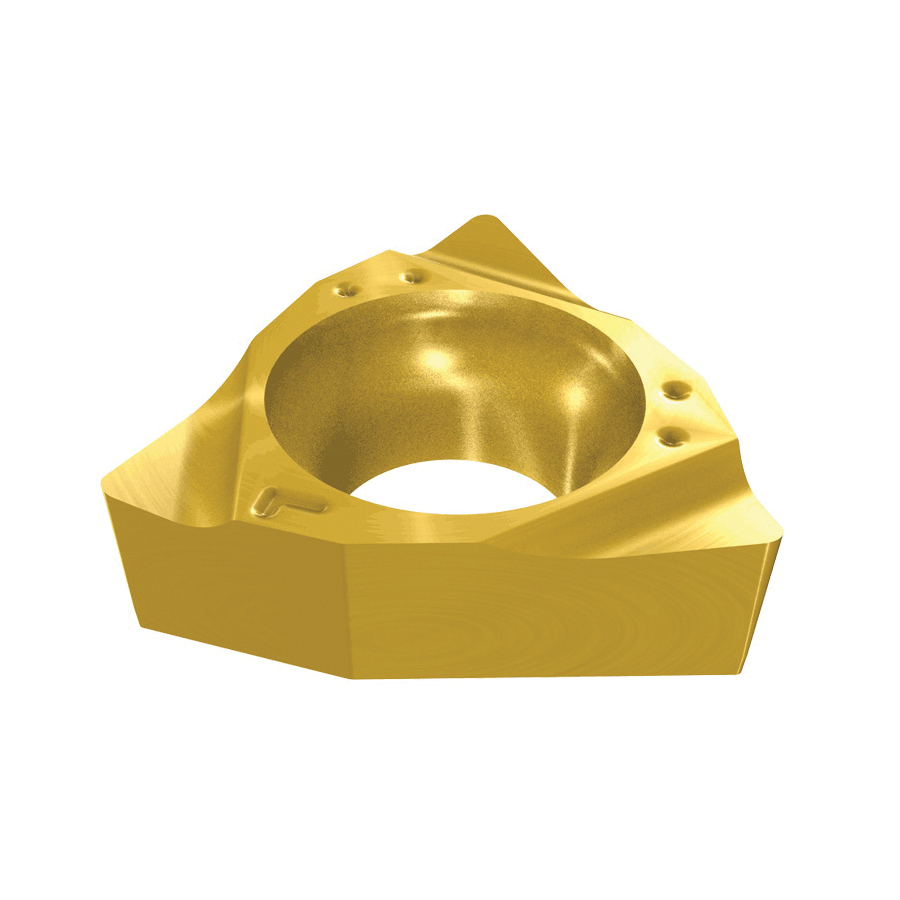

Iscar 5509501 ISOTURN Turning Insert, ANSI Code: WBMT 520-L IC830, WBMT Insert, Material Grade: M, P, S, 520 Insert, Trigon Shape, 06 Seat, Positive Rake, Left Hand Cutting, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Wbmt 520l Ic830
Factory Order
Iscar Turning Insert, Series: ISOTURN, WBMT Insert, 520 Insert, Trigon, 2 mm Maximum Depth of Cut, 3.97 mm Inscribed Circle, 1.59 mm Thickness, 06 Seat, Positive Rake, 0.2 mm Corner Radius, 2.26 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: WBMT 520-L IC830, ISO Code: WBMT 060102L IC830, 80 deg Included Angle, 5 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive flank inserts with a ground chipformer
- Used for finishing on miniature boring bars, provide excellent surface finish
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeWBMT 520-L IC830
Corner Radius0.2 mm
Cutting DirectionLeft Hand
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter2.26 mm
Included Angle80 deg
Inscribed Circle3.97 mm
Insert Size520
Insert StyleWBMT
ISO CodeWBMT 060102L IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle5 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness1.59 mm
