Iscar ISCAR 5509497

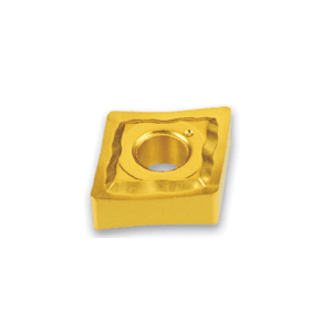

Iscar 5509497 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-PP IC830, CNMG Insert, Material Grade: M, P, S, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Cnmg 432-pp Ic830
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, PP Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: CNMG 432-PP IC830, ISO Code: CNMG 120408-PP IC830, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Double-sided 80 deg rhombic inserts with a positive rake angle and sharp, positive radial edge
- Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys
- Chipbreaker on both sides with hole
Specifications
ANSI CodeCNMG 432-PP IC830
ChipbreakerPP
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter5.1562 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-PP IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
