Iscar ISCAR 5509376
Iscar 5509376 HELITURN Turning Insert, ANSI Code: CNMX 452-M4MW IC6015, CNMX Insert, Material Grade: M, 452 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel, Carbide, Manufacturers Grade: IC6015
Invoice description:
Cnmx 120708-m4mw Ic6015 Turning Insert
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5509376
$16.72 EA
Factory OrderEstimated to ship in 14 days

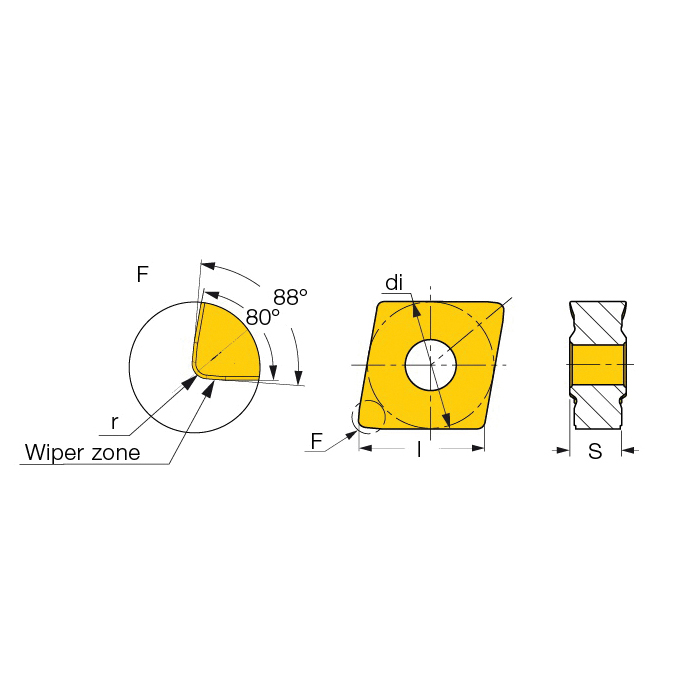

Iscar Turning Insert, Series: HELITURN, CNMX Insert, 452 Insert, Rhombic, 6 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.78 mm Thickness, 12 Seat, Positive Rake, MMW Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC6015, ANSI Code: CNMX 452-M4MW IC6015, ISO Code: CNMX 120708-M4MW IC6015, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
- IC6015 grade a very hard substrate with a cobalt enriched outer layer and alpha Al2O3 coating
- Used for finishing and medium turning of stainless steel at high cutting speed
- Features long tool life and excellent repeatability
Specifications
ApplicationHeavy Machining Applications
ANSI CodeCNMX 452-M4MW IC6015
ChipbreakerMMW
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size452
Insert StyleCNMX
ISO CodeCNMX 120708-M4MW IC6015
Manufacturers GradeIC6015
MaterialCarbide
Material GradeM
Maximum Depth of Cut6 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesHELITURN
ShapeRhombic
Thickness6.78 mm
Additional Information
Country of OriginIL
