Iscar ISCAR 5508895

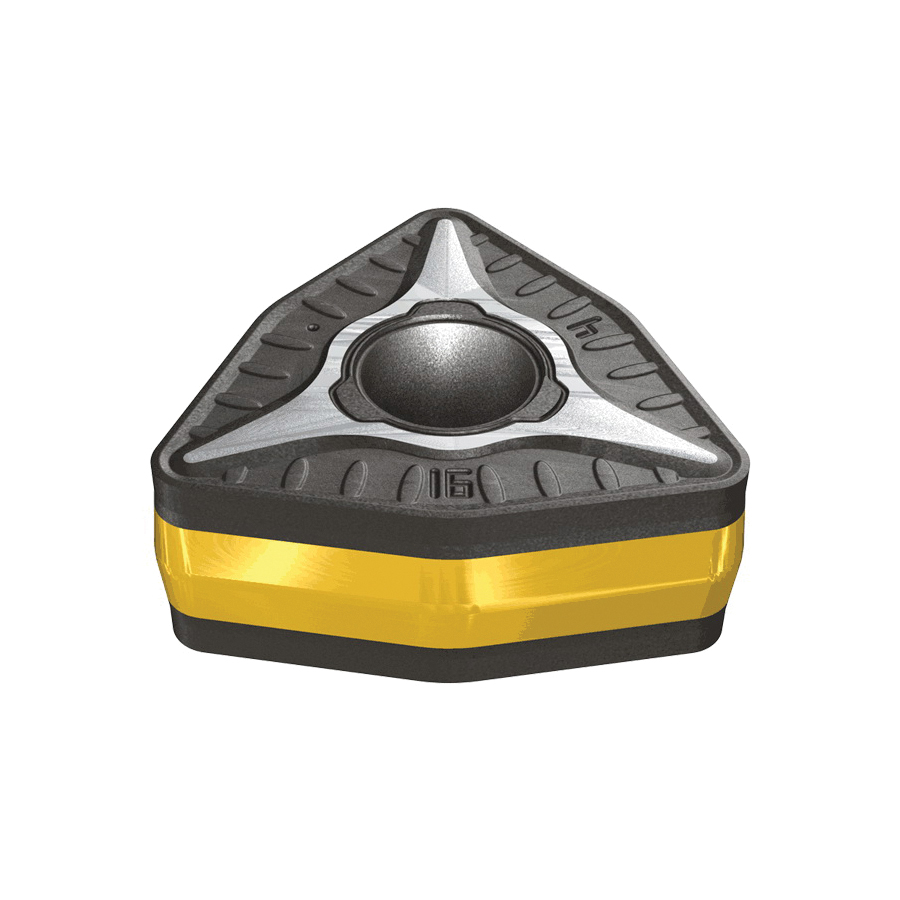

Iscar 5508895 ISOTURN 2-Sided Turning Insert, ANSI Code: WOMG 554-T3P-IQ IC8250, WOMG Insert, Material Grade: M, P, 554 Insert, Trigon Shape, 10 Seat, Negative Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Invoice description:
Womg 554-t3p-iq Ic8250
Factory Order

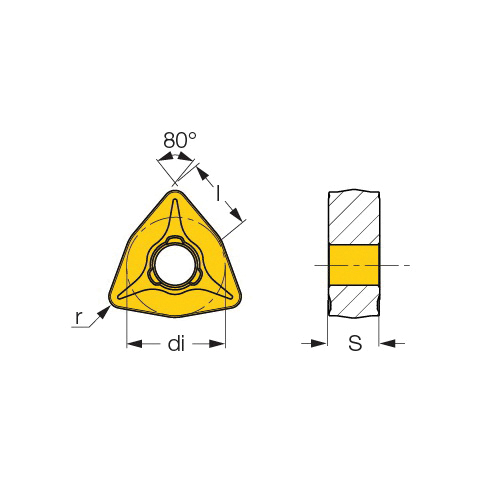

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WOMG Insert, 554 Insert, Trigon, 2.8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 7.94 mm Thickness, 10 Seat, Negative Rake, IQ Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: WOMG 554-T3P-IQ IC8250, ISO Code: WOMG 100716-T3P-IQ IC8250, 80 deg Included Angle, 6 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- 6 deg negative side flank trigon inserts for high feed turning of steel
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ANSI CodeWOMG 554-T3P-IQ IC8250
ChipbreakerIQ
Corner Radius1.6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle15.88 mm
Insert Size554
Insert StyleWOMG
ISO CodeWOMG 100716-T3P-IQ IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.8 mm
RakeNegative
Relief Angle6 deg
Seat Size10
SeriesISOTURN
ShapeTrigon
Thickness7.94 mm
Type2-Sided
Additional Information
Country of OriginIL
