Iscar ISCAR 5508645

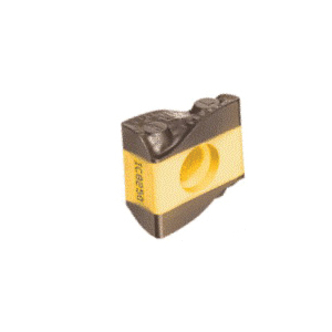

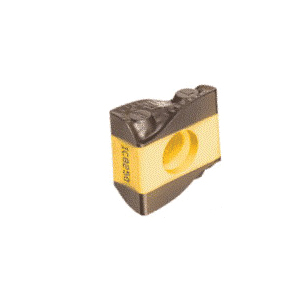

Iscar 5508645 HELITURN Tangential Turning Insert, ANSI Code: LNMX 150608R-HT IC8150, LNMX Insert, Material Grade: K, P, 150608 Insert, Rectangle Shape, 15 Seat, Positive Rake, Right Hand Cutting, For Use On Cast Iron and Steel, Carbide
Invoice description:
Lnmx 150608r-ht Ic8150
Factory Order
Iscar Turning Insert, Tangential, Series: HELITURN, LNMX Insert, 150608 Insert, Rectangle Shape, 6 mm Maximum Depth of Cut, 13.4 mm Thickness, 6.4 mm Width, 15 mm Length, 15 Seat, Positive Rake, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8150, ANSI Code: LNMX 150608R-HT IC8150, ISO Code: LNMX 150608R-HT IC8150, 90 deg Included Angle, 0 deg Relief Angle, Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeLNMX 150608R-HT IC8150
ChipbreakerHT
Corner Radius0.8 mm
Cutting DirectionRight Hand
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Included Angle90 deg
Insert Size150608
Insert StyleLNMX
ISO CodeLNMX 150608R-HT IC8150
Length15 mm
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut6 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesHELITURN
ShapeRectangle
Thickness13.4 mm
TypeTangential
Width6.4 mm
Additional Information
Country of OriginIL
