Iscar ISCAR 5508533

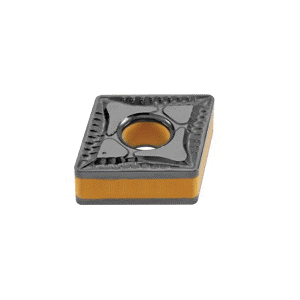

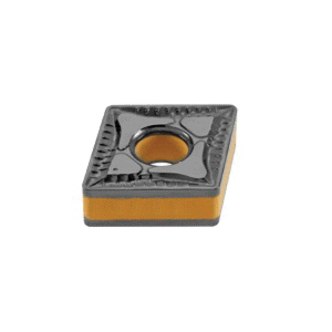

Iscar 5508533 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 543-GN IC5010, CNMG Insert, Material Grade: K, 543 Insert, Rhombic Shape, 16 Seat, For Use On Cast Iron, Carbide, Manufacturers Grade: IC5010
Invoice description:
Cnmg 543-gn Ic5010
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 543 Insert, Rhombic, 7 mm Maximum Depth of Cut, 15.8 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, GN Chipbreaker, 1.2 mm Corner Radius, 1/4 in Hole Dia, Manufacturers Grade: IC5010, ANSI Code: CNMG 543-GN IC5010, ISO Code: CNMG 160612-GN IC5010, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron
Features
- Secure cutting edge
- IC5010 grade a hard substrate, improved MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Chipbreaker on both sides with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeCNMG 543-GN IC5010
ChipbreakerGN
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron
Hole Diameter1/4 in
Included Angle80 deg
Inscribed Circle15.8 mm
Insert Size543
Insert StyleCNMG
ISO CodeCNMG 160612-GN IC5010
Manufacturers GradeIC5010
MaterialCarbide
Material GradeK
Maximum Depth of Cut7 mm
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
