Iscar ISCAR 5508284

Iscar 5508284 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 433-NR IC5010, CNMG Insert, Material Grade: K, 433 Insert, Rhombic Shape, 12 Seat, For Use On Cast Iron, Carbide, Manufacturers Grade: IC5010

UNSPSC: 23242107
Manufacturer PN: 5508284
$13.90 EA
Factory Order
Estimated to ship in 14 days
QTY:

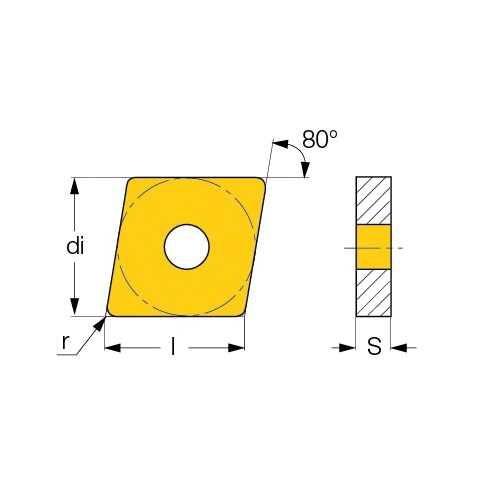

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 433 Insert, Rhombic, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, NR Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC5010, ANSI Code: CNMG 433-NR IC5010, ISO Code: CNMG 120412-NR IC5010, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

  • Features

  • Special chipformer for heavy machining
  • Chipbreaker on both sides with hole

Specifications

ANSI CodeCNMG 433-NR IC5010
ChipbreakerNR
Corner Radius1.2 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size433
Insert StyleCNMG
ISO CodeCNMG 120412-NR IC5010
Manufacturers GradeIC5010
MaterialCarbide
Material GradeK
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
