Iscar ISCAR 5508277

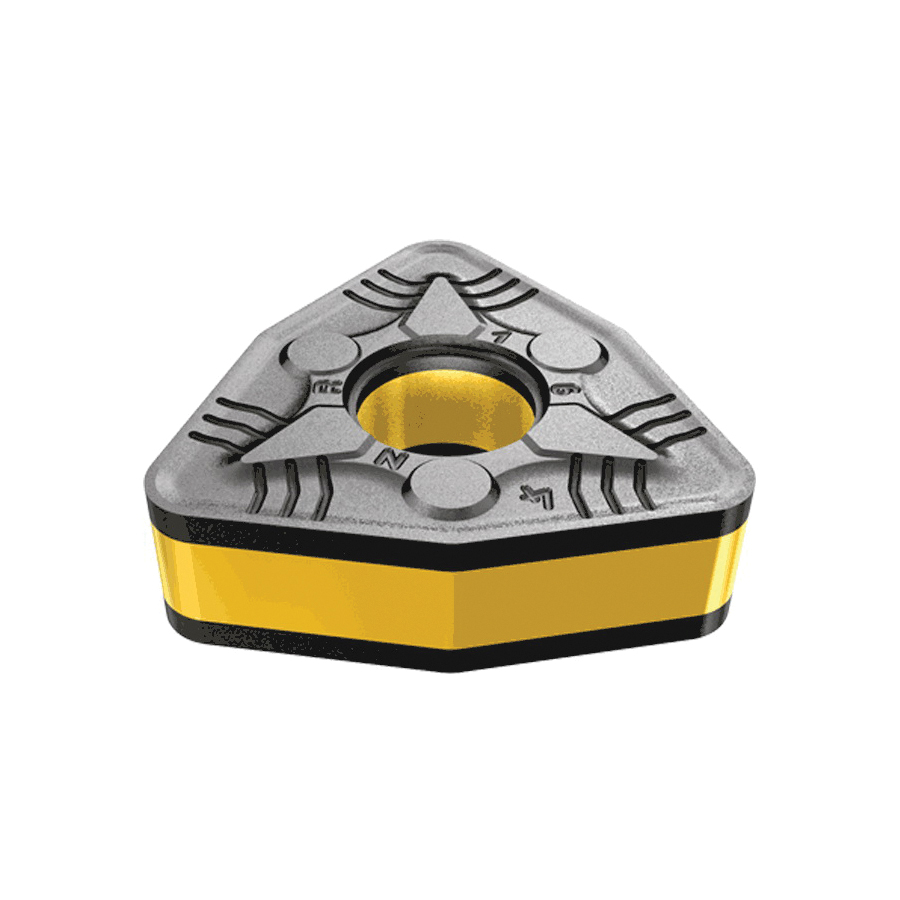

Iscar 5508277 2-Sided Turning Insert, ANSI Code: WNMG 432-NR IC8250, WNMG Insert, Material Grade: M, P, 432 Insert, Trigon Shape, 08 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC8250
Factory Order
Iscar Turning Insert, 2-Sided, WNMG Insert, 432 Insert, Trigon, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, NR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: WNMG 432-NR IC8250, ISO Code: WNMG 080408-NR IC8250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Special chipformer for heavy machining
- IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance

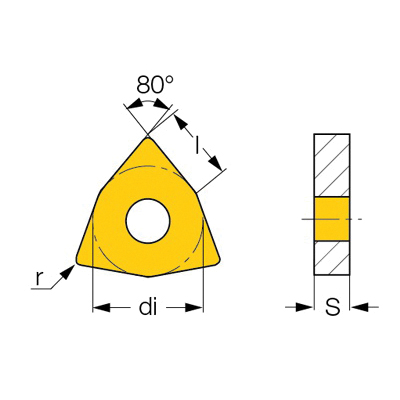

Specifications
ANSI CodeWNMG 432-NR IC8250
ChipbreakerNR
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-NR IC8250
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size08
ShapeTrigon
Thickness4.76 mm
Type2-Sided
