Iscar ISCAR 5508230

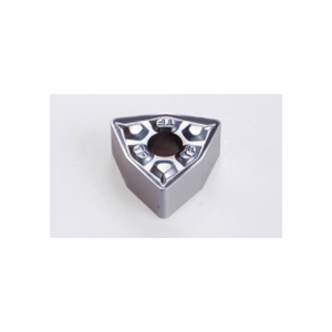

Iscar 5508230 2-Sided Turning Insert, ANSI Code: WNMG 332-TF IC807, WNMG Insert, Material Grade: H, K, M, P, S, 332 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Wnmg 332-tf Ic807
Factory Order

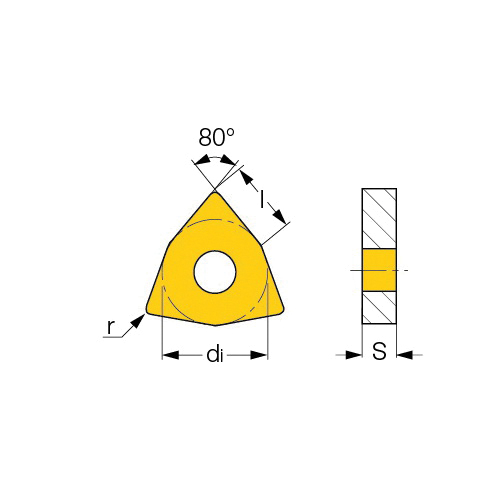

Iscar Turning Insert, 2-Sided, WNMG Insert, 332 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC807, ANSI Code: WNMG 332-TF IC807, ISO Code: WNMG 060408-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeWNMG 332-TF IC807
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleWNMG
ISO CodeWNMG 060408-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
ShapeTrigon
Thickness4.76 mm
Type2-Sided
