Iscar ISCAR 5508229

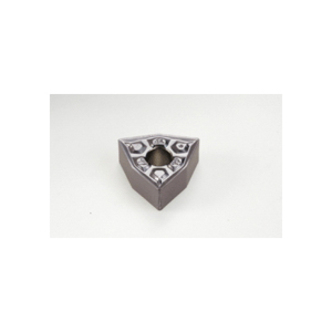

Iscar 5508229 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 331-TF IC807, WNMG Insert, Material Grade: H, K, M, P, S, 331 Insert, Trigon Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Wnmg 331-tf Ic807
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 331 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: WNMG 331-TF IC807, ISO Code: WNMG 060404-TF IC807, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 331-TF IC807
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.15 in
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleWNMG
ISO CodeWNMG 060404-TF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
