Iscar ISCAR 5508210

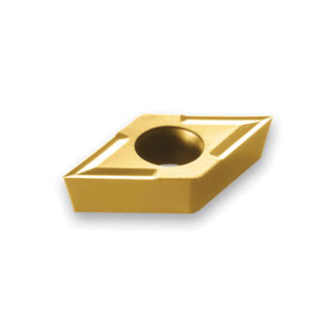

Iscar 5508210 ISOTURN Turning Insert, ANSI Code: DCMT 2-1 IC8150, DCMT Insert, Material Grade: K, P, 2-1 Insert, Rhombic Shape, 07 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Dcmt 2-1 Ic8150
Factory Order

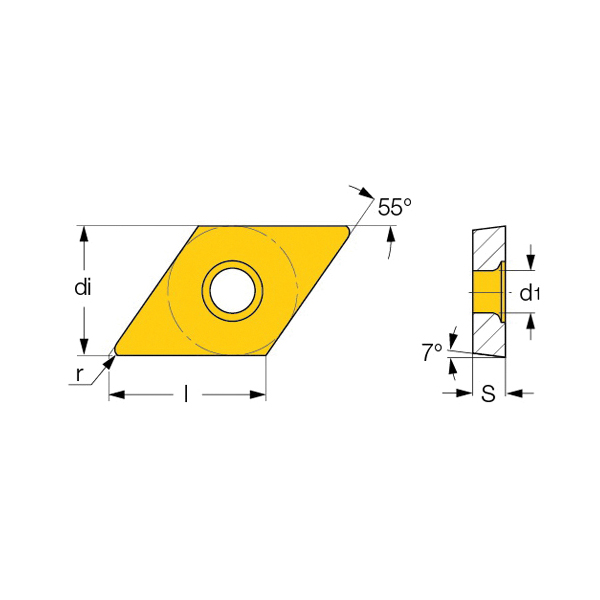

Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 2-1 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 07 Seat, Positive Rake, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: DCMT 2-1 IC8150, ISO Code: DCMT 070204 IC8150, 55 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 2-1 IC8150
Corner Radius0.4 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter2.8 mm
Included Angle55 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleDCMT
ISO CodeDCMT 070204 IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size07
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Additional Information
Country of OriginIL
