Iscar ISCAR 5508205

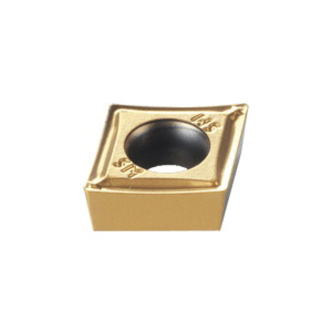

Iscar 5508205 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 432-SM IC8150, CCMT Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC8150
Invoice description:
Ccmt 432-sm Ic8150
Factory Order

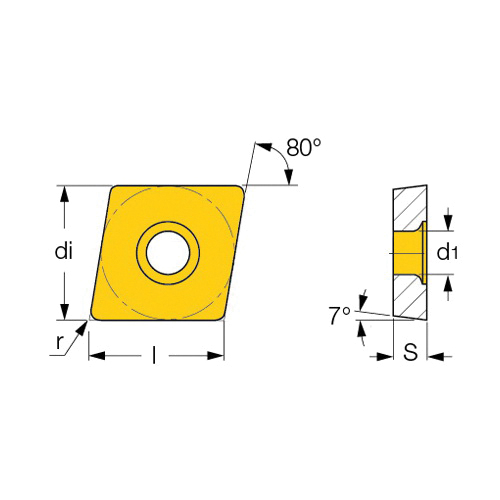

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 5.5 mm Hole Dia, Manufacturers Grade: IC8150, ANSI Code: CCMT 432-SM IC8150, ISO Code: CCMT 120408-SM IC8150, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiCN+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 432-SM IC8150
ChipbreakerSM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiCN+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter5.5 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCCMT
ISO CodeCCMT 120408-SM IC8150
Manufacturers GradeIC8150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle7 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
